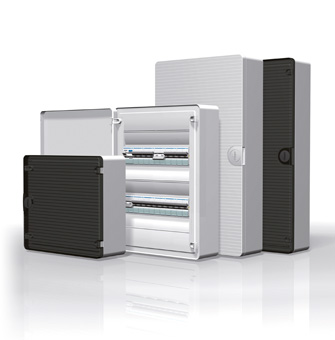

golf compact enclosures

When building or renovating residential buildings, compact solutions are often required for electrical installations. The golf small enclosure is particularly suitable thanks to its ease of mounting on walls.

The small enclosure is easily and swiftly mounted and offers space for a large number of modular devices. Thanks to a patented convenient cable management system, cables can be laid safely and swiftly.

Your benefits

  • Easy installation of the surface-mounted enclosure - can be turned though 180°
  • Sure 6-point fixture with 2 keyholes arranged in the centre
  • Optimised pipe and trunking entries
  • More wiring space between the modular devices and terminals as well as behind the DIN rails
  • Clean and convenient wiring thanks to patented integrated cable management system
  • Unbreakable door hinges
  • Same door for VS surface-mounted version and VF flush mounted version

Characteristics

  • Surface mounted
  • Assembly of devices up to 63A
  • Ingress protection IP30 (without door), IP40 (with door)
  • Isolation class II, double insulation
  • Impact resistance IK07

golf's features
