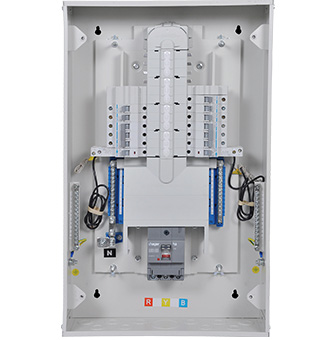

invicta TPN 250 type B distribution boards

Hager has developed invicta TPN distribution boards as a solution for modern commercial and residential installations.

The invicta range includes 250A boards with MCCB incomer or direct link.
The range is presented in surface mounting and includes boxes with capacities of 4 ways up to 24 ways in fixed load types.

Product features

Your benefits

  • High flexibility: removable and height adjustable PAN assembly
  • Sustainability:1.2mm thick treated and powder coated sheet steel, tinned copper busbar preventing corrosion
  • Easy installation: removable and reversible door
  • Fast extension: top "Tap-Off"
  • High protection: rated short circuit withstand capacity of 20kA for 0.2sec and 17kA for 0.25sec
  • Safe maintenance: fully insulated busbar IP20 incomer shroud
  • More comfort: ample wiring space

Technical characteristics

  • Standards: IEC61439-1&3
  • Suitable for non-modular incomers and modular outgoings
  • ASTA certified
  • Busbar current rating: 250A
  • Rated short circuit withstand for busbars: 20kA for 0,2sec and 17kA for 0,25sec
  • Removable pre punched top and bottom gland plates
  • Incomer cutout width: 9 mod
  • Reversible doors
  • 1,2mm thickness sheet steel with epoxy powder coating in RAL 9002
  • IP41
  • Accessories: key lock, DIN rail extension boxes
