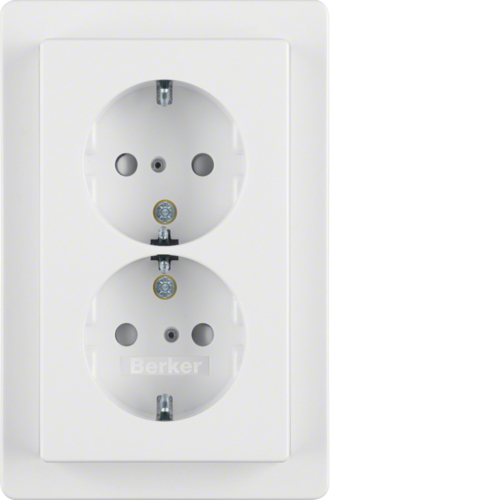

SKO DP-STD M ERHBS U STKL Q1 P-W
| Cat ref.: | 47296089 |
| EAN No.: | 4011334313304 |
This product is now obsolete. However, this page remains available for information purposes. Please contact your wholesaler in order to find appropriate replacement products. Obsolete reference: 47296089 Replacement reference:
close all
open all| Design: | according to DIN 49440 |
| Nominal voltage: | 250 V |
| Rated current: | 16 A |
| Rated voltage: | 250 V AC |
|
| RAL colour: | RAL 9010 - Pure white |
| Colour of design line: | polar white |
| Colour: | white |
| Colour: | polarwhite |
| Material: | duroplastic |
| Surface appearance: | velvety |
| Assembling height: | 22 mm |
| For installation in 1gang wall boxes: | according to DIN 49073-1 |
| |
| Connection terminals: | according to IEC 60884-1 |
| Connection terminals: | according to VDE 0620-1 |
| |
|
| Protection index IP: | IP20 |
| IK protection code against mecanical impacts: | 02 |
| Enhanced contact protection (child protection): | according to IEC 60884-1 |
| Enhanced contact protection (child protection): | according to VDE 0620-1 |
| |
| Secondary design line(s): | Berker Q.1, Berker Q.3, Berker Q.7, Berker Q.9 |
Data is subject to errors and technical modifications.
