EC360

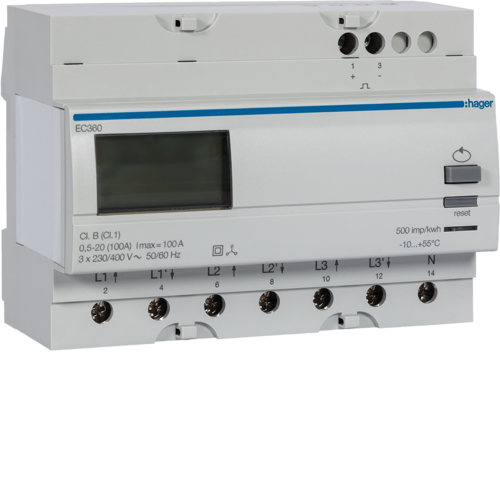

EC360 3Ph Kwhmeter direct 100A

EC360

3Ph Kwhmeter direct 100A

Cat ref.:EC360
EAN No.:

3250612233601

This product is now obsolete. However, this page remains available for information purposes. Please contact your wholesaler in order to find appropriate replacement products. Obsolete reference: EC360 Replacement reference:
Technical Characteristics
Number of poles:3 P
Type of pole:3P+N
Fixing mode:REG
Precision class:B
Tarif type:One-tariff
Suitable for:Purchase
Frequency:50/60 Hz
Rated operational voltage Ue:195/400/460 V
Rated insulation voltage:4 kV
Operating current:0,08/100 A
Max. measurement circuit current:100 A
Power consumed:7,5 VA
Total power loss under IN:1,8 W
Plage Impulsion/KWh:10 Imp/kWh
Type of pulse generator:électrical
Idle power measurement:activ and reactiv energy
Voltage measurement range:230 V
Type of measuring instrument:electronical
Number of phases for the power supply:4 phases
Supply voltage:230/400 V +/- 15%
Height of installed product:90 mm
Width of installed product:122,5 mm
Connection cross-sect. rigid cable:2,5 / 35mm²
Connection cross-sect. flexible conductor:2,5 / 35mm²
Type of Bus connexion:other
Connection:direct connection
Value of a pulse:100 Wh
Tariff model of kilowatt-hour meter:Externa
Pulse duration:100 ms
Interval between 2 pulses:100 ms
Protection index IP:IP20
Storage temperature:-25 to 70 °C
