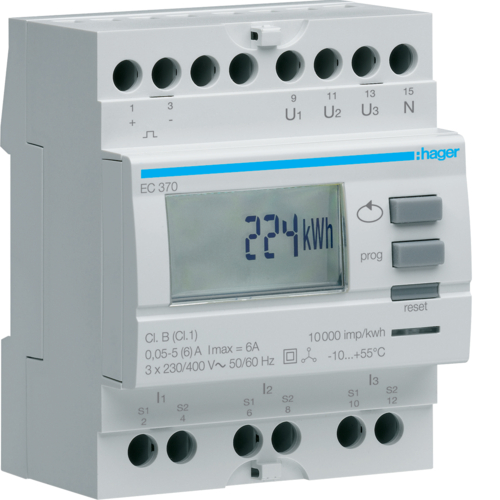

EC370
EC370
3Ph Kwhmeter via CT
| Cat ref.: | EC370 |
| EAN No.: | 3250612233700 |
This product is now obsolete. However, this page remains available for information purposes. Please contact your wholesaler in order to find appropriate replacement products. Obsolete reference: EC370 Replacement reference:
close all
open all| Number of poles: | 3 P |
| Type of pole: | 3P+N |
| Fixing mode: | REG |
| Precision class: | B |
| Tarif type: | One-tariff |
| Suitable for: | Purchase |
| Number of positions of the switch: | 1 |
| Frequency: | 50/60 Hz |
| Rated operational voltage Ue: | 195/400/460 V |
| Rated insulation voltage: | 4 kV |
| Operating current: | 0,01/6 A |
| Max. measurement circuit current: | 6000 A |
| Power consumed: | 8,4 VA |
| Total power loss under IN: | 1,8 W |
| Plage Impulsion/KWh: | 10 Imp/kWh |
| Type of pulse generator: | électrical |
| Idle power measurement: | activ and reactiv energy |
| Voltage measurement range: | 230 V |
| Type of measuring instrument: | electronical |
| Principle of measurement: | Measurement transformer |
| Number of phases for the power supply: | 4 phases |
| Supply voltage: | 230/400 V +/- 15% |
| Height of installed product: | 90 mm |
| Width of installed product: | 72 mm |
| Mounting Method: | Hollow wall |
| Mounting type: | din-Rail |
| Connection cross-sect. rigid cable: | 1,5 / 10mm² |
| Connection cross-sect. flexible conductor: | 1 / 6mm² |
| Type of Bus connexion: | other |
| Connection: | connection with tore |
| Value of a pulse: | 100 Wh |
| Number of positions total: | 7 |
| Maximum number of items: | 1 |
| Tariff model of kilowatt-hour meter: | Externa |
| Pulse duration: | 100 ms |
| Interval between 2 pulses: | 100 ms |
| Transformation Ratio: | 50;5 |
| Approval: | MID (Measuring Instruments Directive) |
| Protection index IP: | IP20 |
| Storage temperature: | -20 to 70 °C |
