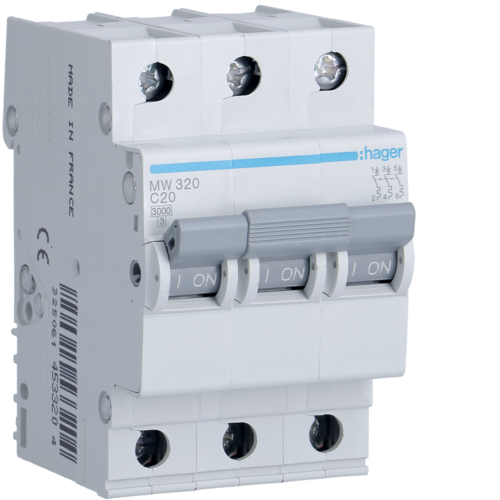

MW320
MW320
MCB 3P 3kA C-20A 3M
| Cat ref.: | MW320 |
| EAN No.: | 3250614533204 |
This product is now obsolete. However, this page remains available for information purposes. Please contact your wholesaler in order to find appropriate replacement products. Obsolete reference: MW320 Replacement reference:
close all
open all| Number of protected poles: | 3 |
| Number of poles: | 3 P |
| Type of pole: | 3 P |
| Curve: | C |
| Bottom connection alignement for modular devices: | Aligned terminal |
| Top connection alignement for modular devices: | Aligned terminal |
| Frequency: | 50/60 Hz |
| Rated short circuit breaking capacity Icn AC according IEC60898-1: | 3 kA |
| Rated operational voltage Ue: | 230/400 V |
| Rated insulation voltage: | 500 V |
| Rated impulse withstand voltage: | 4000 V |
| Rated short circuit breaking capacity Icn under 400V AC according IEC60898-1: | 3 kA |
| Rated service breaking capacity Ics AC according IEC 60898-1: | 3 kA |
| Breaking capacity on 1 pole with 400 V NF 60947-2: | 3 kA |
| Rated ultimate short-circuit breaking capacity Icu under 415V AC IEC 60947-2: | 4,5 kA |
| Magnetic regulating currrent at 40° C: | 5/10 In |
| min/maxi threshold value of the DC magnetic operation: | 7/15 In |
| min/maxi threshold value of the AC thermal operation: | 1,13/1,45 In |
| min/maxi threshold value of the DC thermal operation: | 1,13/1,45 In |
| Rating current -15°C: | 23,9 A |
| Rating current -20°C: | 24,3 A |
| Rating current 0°C: | 22,7 A |
| Rating current 10°C: | 21,8 A |
| Rating current -10°C: | 23,5 A |
| Rating current 15°C: | 21,4 A |
| Rating current 20°C: | 20,9 A |
| Rating current 25°C: | 20,5 A |
| Rating current -25°C: | 24,6 A |
| Rating current 30°C: | 20 A |
| Rating current 35°C: | 19,5 A |
| Rating current 40°C: | 19 A |
| Rating current 45°C: | 18,5 A |
| Rating current 5°C: | 22,2 A |
| Rating current -5°C: | 23,1 A |
| Rating current 50°C: | 18 A |
| Rating current 55°C: | 17,5 A |
| Rating current 60°C: | 16,9 A |
| Rating current 65°C: | 16,4 A |
| Rating current 70°C: | 15,9 A |
| Correction factor of magnetic tripping with 100 Hz: | 1,1 |
| Correction factor of magnetic tripping with 200 Hz: | 1,2 |
| Correction factor of magnetic tripping with 400 Hz: | 1,5 |
| Correction factor of magnetic tripping with 60 Hz: | 1 |
| Correction factor of rating current for 2 devices placed side-by-side: | 1 |
| Correction factor of rating current for 3 devices placed side-by-side: | 0,95 |
| Correction factor of rating current for 4 and 5 devices placed side-by-side: | 0,9 |
| Correction factor of rating current for 6 devices placed side-by-side: | 0,85 |
| Power loss per pole at In: | 2,93 W |
| Total power loss under IN: | 8,7 W |
| Electric endurance in number of cycles: | 4000 |
| Number of mechanical operations: | 20000 |
| Depth of installed product: | 70 mm |
| Height of installed product: | 83 mm |
| Width of installed product: | 52,5 mm |
| Type of top connection for modular devices: | with screw |
| Tightening torque: | 2,8Nm |
| Type of bottom rail clip for modular devices: | metallic |
| Type of top rail clip for modular devices: | NA |
| Type of Bottom Connection for modular devices: | BIconnect |
| Bottom removability for modular devices: | no |
| Top removability for modular devices: | no |
| Connection cross-sect. rigid cable: | 1 / 35mm² |
| Connection cross-sect. flexible conductor: | 1 / 25mm² |
| Type of connection: | with screw |
| Connection cross section of access and exit with screws, for flexible conductor: | 1/25 mm² |
| Connection cross-section of input and output with screws, for massive conductors: | 1/35 mm² |
| Standard text: | EN 60898-1 |
| European directive WEEE: | concerned |
| Protection index IP: | IP20 |
| Degree of pollution according to IEC 60664 / IEC 60947-2: | 2 |
| Operating temperature: | -25 … 70 °C |
| Class of energy limitation I²t: | 3 |
| Altitude: | 2000 m |
| Storage temperature: | -25 to 80 °C |
| Air humidity protection: | for all climates |
| Storage/transport temperature: | -25 … 80 °C |
- MW320
MW320
Data is subject to errors and technical modifications.
