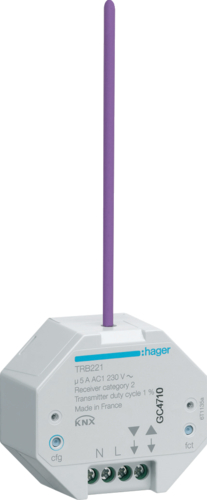

1 flush mounted output f. blinds/shutter
| Cat ref.: | TRB221 |
| EAN No.: | 3250615989307 |
This product is now obsolete. However, this page remains available for information purposes. Please contact your wholesaler in order to find appropriate replacement products. Obsolete reference: TRB221 Replacement reference:
close all
open all| Bus system: | KNX |
| Number of blinds/shutters outputs: | 1 |
| Fixing mode: | flush-mounting |
| Bus module detachable: | no |
| Indicator lamp: | yes |
| Bus system LON: | no |
| Bus system Powernet: | no |
| Bus system radio frequent: | yes |
| Type of supply voltage: | AC |
| System supply voltage: | 230V AC |
| Maximum switching current: | 5 A |
| Contact rating with 230 V in AC1: | 1000 W |
| Colour: | stone grey |
| Connection cross-sect. rigid cable: | 0,5 / 2,5mm² |
| Connection cross-sect. flexible conductor: | 0,5 / 2,5mm² |
| Type of connection: | with screw |
| Bus connection included: | no |
| Bidirectional radio frequency: | yes |
| Protection index IP: | IP20 |
| Device family: | TR |
Data is subject to errors and technical modifications.
