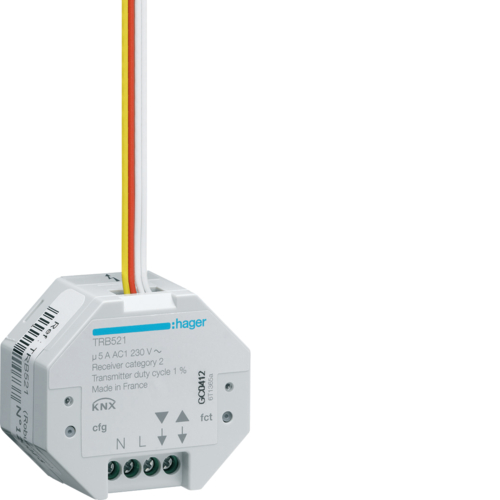

TRB521
TRB521
; "TRB521 2 bin inputs + 1 output blinds /shutters")
; "QUICKLINK-LOGO__APP-SYMBOL"){kind=logo}
; "KNX-FUNK-JALOUSIEAKTOR-2XBINAEREINGAENGE__WIRING-SYMBOL")
; "IP30__PROTECTION-SYMBOL")
; "CD_TEBISQL")
2 bin inputs + 1 output blinds /shutters
| Cat ref.: | TRB521 |
| EAN No.: | 3250615985200 |
This product is now obsolete. However, this page remains available for information purposes. Please contact your wholesaler in order to find appropriate replacement products. Obsolete reference: TRB521 Replacement reference:
close all
open all| Bus system: | KNX |
| Number of blinds/shutters outputs: | 1 |
| Fixing mode: | flush-mounting |
| Bus module detachable: | no |
| |
| |
| |
| |
| |
| |
| |
|
| Indicator lamp: | yes |
| |
| |
| |
| Bus system LON: | no |
| Bus system Powernet: | no |
| Bus system radio frequent: | yes |
| Radio protocol: | KNX Radio |
| Receiver category: | 2 |
| |
| Type of supply voltage: | AC |
| Operating voltage: | 230 V AC |
| Number of entry circuits: | 2 |
| Maximum switching current: | 5 A |
| Radio reception frequency: | 868,3 MHz |
| Contact rating with 230 V in AC1: | 1150 W |
| Radio transmission power: | < 10 mW |
| Input scanning voltage: | per channel 5 V |
| Colour: | stone grey |
| Dimensions (Ø x H): | 53 x 27 mm |
| |
|
|
| Conductor cross-section: | 0,5 … 2,5 mm² |
| Connection cross-sect. rigid cable: | 0,5 / 2,5mm² |
| Connection cross-sect. flexible conductor: | 0,5 / 2,5mm² |
| Type of connection: | with screw |
| |
| |
| Binary cable length, extendable to: | max. 5 m |
| Binary cable length: | ≈ 20 cm |
| Lamella adjustment on signal duration: | < 1 s |
| |
| Bus connection included: | no |
| Number of radio channels: | 2 |
| Change-over time for change of direction: | < 0,6 s |
| Bidirectional radio frequency: | yes |
| Number of quicklink links: | max. 20 transmitter/receiver |
| Transmitter duty cycle: | 1 % |
| Pulse time: | min. 50 ms |
| Protection index IP: | IP30 |
| Operating temperature: | 0 … 45 °C |
| Device family: | TR |
Data is subject to errors and technical modifications.
