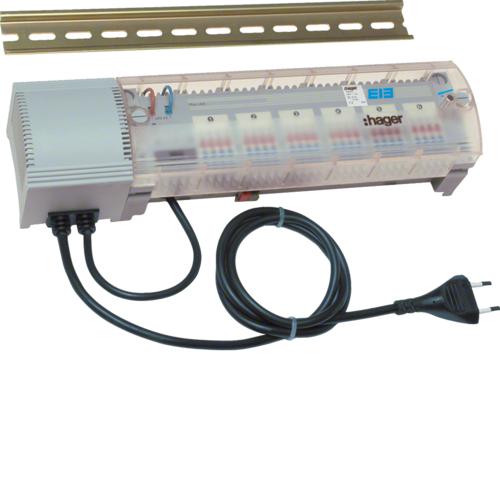

TX206H

Heating actuator 6 channels

Cat ref.:	TX206H
EAN No.:	3250616049581

Download data sheet

This product is now obsolete. However, this page remains available for information purposes. Please contact your wholesaler in order to find appropriate replacement products.

Technical Characteristics

close all

Architecture

Number of outputs:	6
Bus system:	EIB
Fixing mode:	Din-Rail

Functions

for 1 phase operation
with valve protection function

Controls and indicators

with programming button and red programming LED

Connectivity

Bus system LON:	no
Bus system Powernet:	no
Bus system radio frequent:	no
Output type:	triacs 24V

Main electrical features

Frequency:

50/60 Hz

Voltage

Auxiliary voltage:	110 … 230 V AC
Operating voltage over bus:	21 … 32 V DC
Output voltage:	24 V AC
System supply voltage:	230V AC
Switching voltage:	24 V

Electric current

Bus current consumption (data transfer):	< 10 mA
Total output current:	max. 2 A
Rating current of fuse cartridge:	2 A

Fuse

short-circuit and overload proof (fine-wire fuse)

Power

Bus consumption:	10 mA
Power consumed:	50 VA
Total power loss under IN:	50 W
Power dissipation per coil:	0,8 W

Power supply

Transformer:

with integral transformer

Materials

RAL colour:	RAL 7035 - Light grey
Colour:	stone grey
Material:	plastic

Dimensions

Depth of installed product:	70 mm
Height of installed product:	75 mm
Width of installed product:	302 mm

LED control

with green operation LED and red programming LED
with on red heat request LED per channel
with red fuse LED

Installation, mounting

DIN rail mounting possible

Connection

Conductor cross-section (rigid):	0,5 … 1,5 mm²
Connection cross-sect. rigid cable:	0,5 / 1,5mm²
Connection cross-sect. flexible conductor:	1 / 1.5mm²
Terminal type of the outputs:	screwless terminal
Supply connexion type:	socket outlet
Type of connection to the bus:	TG008 connector
with integral bus coupling unit
with plug-in terminals
bus connection via connecting terminal

Settings

Supported configuration modes:	system , easy
with emergency programme, e.g. for sensor or bus failure

Scope of delivery

Bus connection included:

yes

Equipment

Different phases connectable:	no
Actuators, 24 V:	max. 13
Modular expandability:	no
for continuous (PI) or switched (2-point) control
for individual single room temperature control
for valve drives 24 V, closed in de-energized state

Use

with integral transformer

Safety

Protection index IP:

IP20

Use conditions

Operating temperature:	-5 … 45 °C
Storage temperature:	-20 to 60 °C
Storage/transport temperature:	-20 … 70 °C

Identification

Device family:	TB
Main design line:	KNX

Data is subject to errors and technical modifications.
