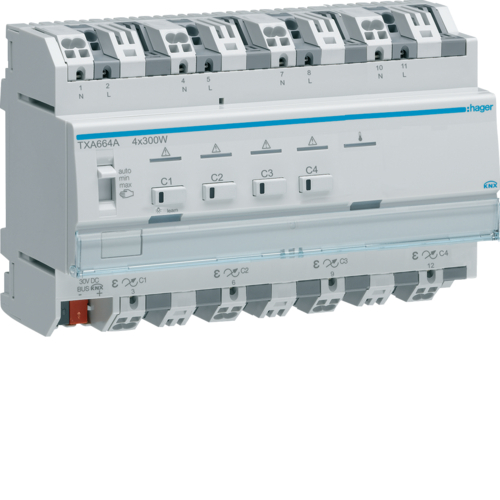

DIMMER 4 CHANNELS 300W NE
| Cat ref.: | TXA664A |
| EAN No.: | 3250616048683 |
This product is now obsolete. However, this page remains available for information purposes. Please contact your wholesaler in order to find appropriate replacement products. Obsolete reference: TXA664A Replacement reference:
close all
open all| Number of outputs: | 4 |
| Bus system: | KNX |
| Fixing mode: | REG |
| |
| |
|
| Indicator lamp: | yes |
| |
| |
| |
| |
| |
| |
| Bus system LON: | no |
| Bus system Powernet: | no |
| Bus system radio frequent: | no |
| Frequency: | 50/60 Hz |
| Rated current: | 5,2 A |
| Auxiliary voltage: | 230 V AC |
| Input voltage: | 230 V AC |
| Operating voltage over bus: | 21 … 32 V DC |
| System supply voltage: | 230V AC |
| Bus current consumption (data transfer): | < 2,3 mA |
| |
| |
|
| Dimmable conventional transformers: | per channel 300 VA |
| Incandescent bulb power: | 20/300 W |
| Total power loss under IN: | 1,71 W |
| Power of the variator: | 0/300 W |
| Electronic transformers: | per channel 300 W |
| Supply voltage: | 230 V +10% / -15% |
| Colour: | light grey |
| Width of rail mounted device (RMD): | 8 modules |
| Quantity energy-saving lamps: | per channel max. 8 |
| Power lighting fluo lamps: | 4 x 60W |
| Dimmable energy-saving lamps: | per channel 60 W |
| Quantity of dimmable, 230 V retrofit LED lamps: | per channel max. 8 |
| Max number of LED/CFL lamps: | 8 |
| Lighting power LED lamps: | 60 W |
| Dimmable LED lamps: | per channel 60 W |
| |
| |
| |
| 230 V incandescent lamps and halogen lamps: | per channel 300 W |
| Max. power with incandescent lamps: | 300 W |
| Conductor cross-section (flexible): | 0,75 … 2,5 mm² |
| Conductor cross-section (rigid): | 0,75 … 2,5 mm² |
| Connection cross-sect. rigid cable: | 0,75 / 2.5mm² |
| Connection cross-sect. flexible conductor: | 0,75 / 2,5mm² |
| Type of load: | universal |
| Type of connection: | quick connect |
| Master / slave possibility: | no |
| |
| |
| |
| Supported configuration modes: | easy , system |
| |
| Bus connection included: | yes |
| Number of outputs: | 4 |
| Substation input: | no |
| Type of dimmer: | universal |
| Modular expandability: | no |
| Power boost suitable: | no |
| |
| |
| |
| Local operation/hand operation: | yes |
| Protection index IP: | IP20 |
| |
| Operating temperature: | -5 … 45 °C |
| Storage temperature: | -20 to 70 °C |
| Storage/transport temperature: | -20 … 70 °C |
| Device family: | TXA |
| Main design line: | KNX |
Data is subject to errors and technical modifications.
